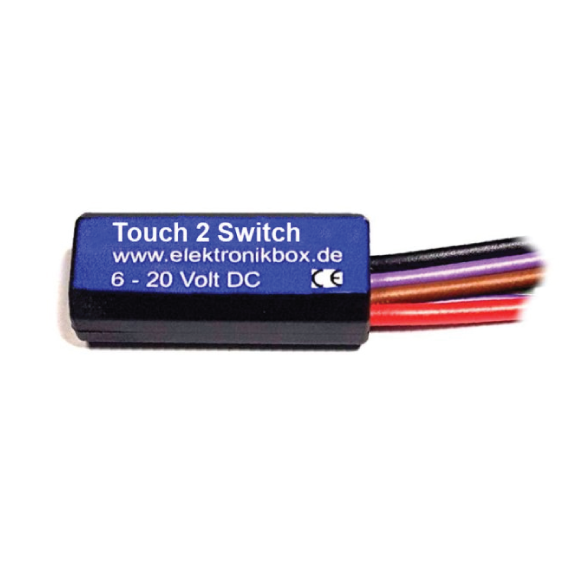

This electronic relay has 2 independent channels which are controlled by 1 or 2 momentary push buttons.
£64.26
This electronic relay has 2 independent channels which are controlled by 1 or 2 momentary push buttons.
£64.26
Every press on a button will toggle the corresponding output between on and off. Each output can drive 60 Watt. The small size allow an installation in the handlebar or in the headlight.
You can use the module also as a standard headlight relay. Just wire the 2 thin input cables together to one push button. The first press on the push button will switch on output 1 (low beam). Every further press on the button toggle the 2 outputs.
Advantages:
– Sometimes there is only a need for 1-2 switch channels what don´t require a complete control box.
– The 2Â inputs can be linked together in order to use it as headlight relay.
– The small dimensions allow an implementation in the most handle bars.
| Dimensions: | 38 mm x 16 mm x 11 mm |
|---|---|
| Body material: | ABS with 2 k epoxy resin potted |
| Input voltage range: | 6 – 18 Volt |
| Connections: | Inputs 0,14 mm², Outputs 0,75 qmm |
| Maximum current: | 6 Ampere / 60 Watt per output |
| Maximum ambience temperature: Â Â | 80 degree Celsius |
